用于生产测试的 GRAS 43AH CCP 耳模拟器，基于 ITU-T Rec. P57 3.2 型低泄漏
Connection: 0 V/CCP
Volume: Complex
Dyn range: 25 dB(A) to 150 dB
ANSI: S3.7
IEC: 60318-1 & -2
GRAS 43AH 耳模拟器由 ITU-T Rec. P.57 2 型耳模拟器和 3.2 型简化低泄漏耳廓模拟器，用于在生产线上对电话听筒、接收器和接收器/扬声器模块进行 ITU-T 标准化测试。
Technology

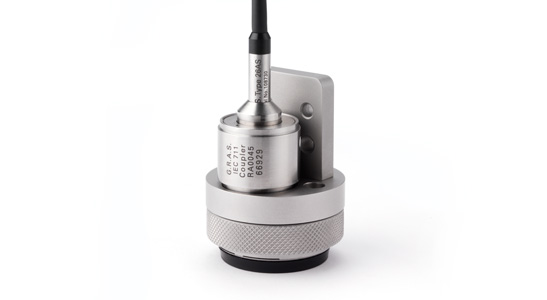

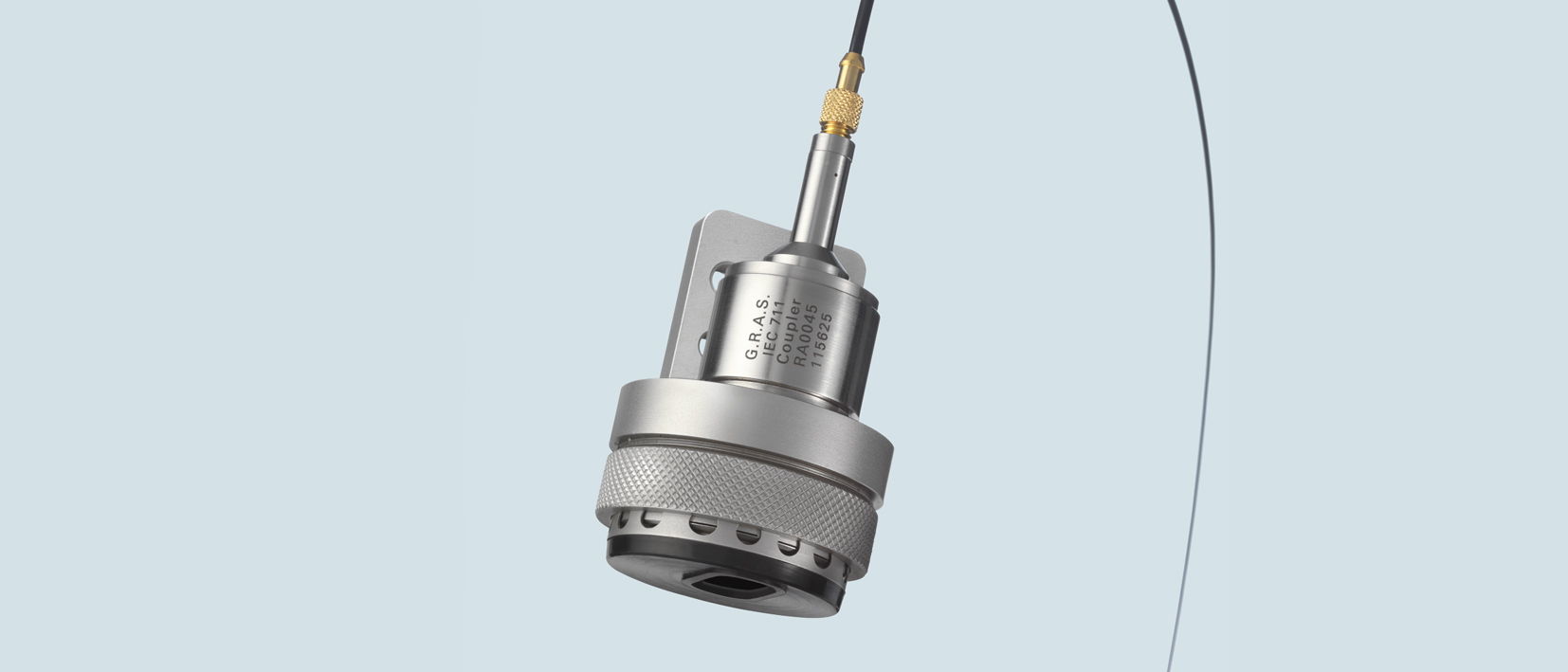

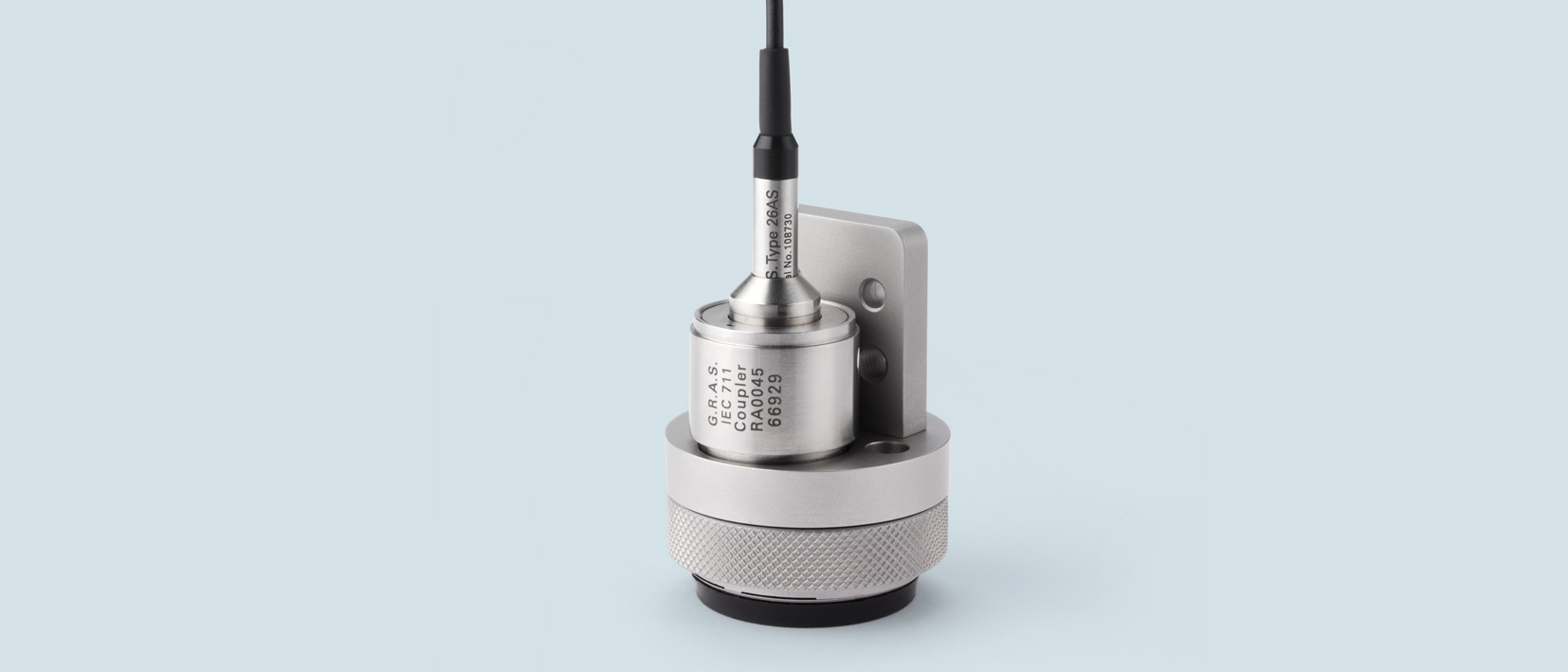

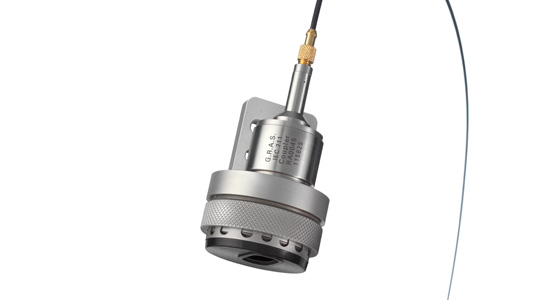

43AH consists of the ITU-T Rec. P57 Type 2 Ear Simulator and Type 3.2 Simplified Low-leak Pinna Simulator and is designed for making ITU-T standardized tests of telephone handsets, receivers and receiver/loudspeaker modules on the production line.
Besides the ear and pinna simulators, GRAS 43AH includes a detachable front-plate that can be machined to make well-defined testing on various receiver related items. A calibration adapter to be used with GRAS 42AA Pistonphone/GRAS 42AP Pistonphone is included.

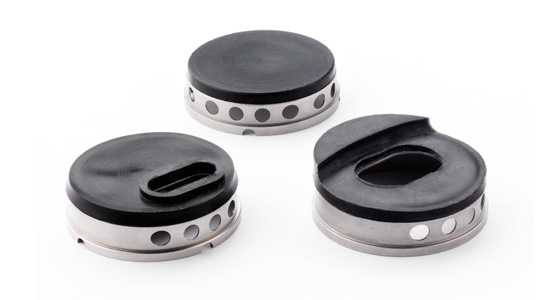

43AH can also be delivered with customized front plates that will enable leakage-controlled testing according to your specific needs.
TEDS Compatibility
43AH is IEEE 1451.4 TEDS v. 1.0 compliant. If your measurement platform supports Transducer Electronic Data Sheets (TEDS), you will be able to read and write data like properties and calibration data.
Specifications
GRAS Sound & Vibration reserves the right to change specifications and accessories without notice.
Ordering info
Included
| GRAS RA0045-S1 | IEC 60711 Ear Simulator, Prepol. |
| GRAS 26CB | ¼'' CCP Preamplifier |
| RS0010 | Generic Adapter Ring |
| RA0119 | Pistonphone Adapter |
Miscellaneous
| GRAS RA0196 | High-tension springs (set of two) |
GRAS Sound & Vibration reserves the right to change specifications and accessories without notice.
