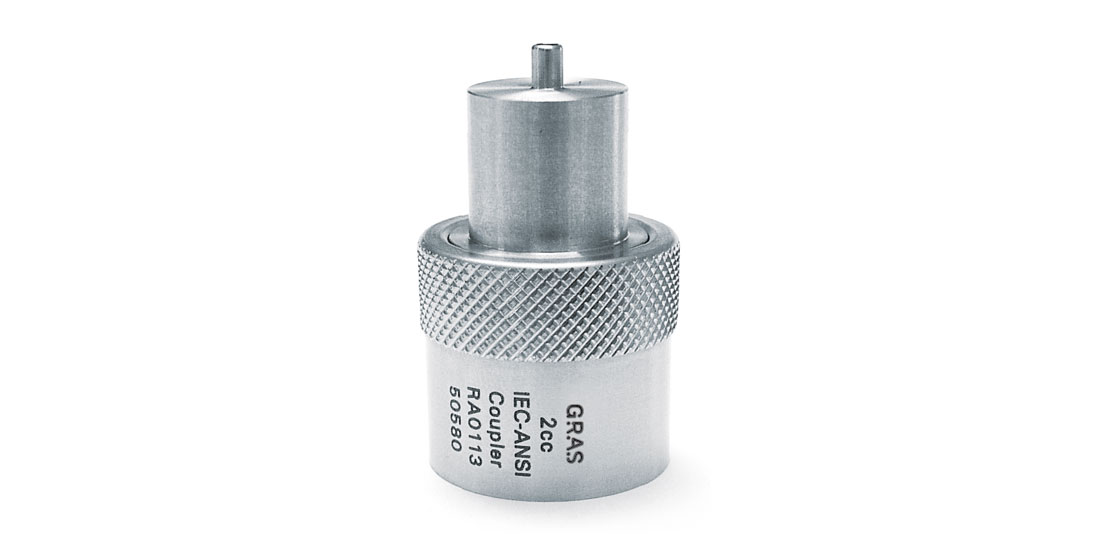

符合IEC 60318-5的GRAS RA0113 1英寸2cc耦合器

Volume: 2 cc
ANSI: S3.7
IEC: 60318-5
Special feature: For 1" pressure microphones

GRAS RA0113 是一个2cc IEC 60126耦合器，它使用1" 传声器，例如 GRAS 40EN.
传声器没有保护网格，用螺丝固定在RA0113的底座上。

Technology

The GRAS RA0113 is a 2cc IEC 60126 coupler which uses a 1" microphone, e.g. the GRAS 40EN.

The microphone, without its protection grid, screws into the base of the RA0113.

In all other respects, this coupler is equivalent to the GRAS RA0038.

Specifications

Connector type
BNC
Polarization/Connection
0 V / CCP
Coupler volume
mm³
0.4 ccm
Humidity range non condensing
% RH
0 to 95
ANSI standard
S3.7
IEC standard
60318-5 (former 60126)
CE/RoHS compliant/WEEE registered
Yes/Yes/Yes
Weight
g / oz
50 / 1.76

GRAS Sound & Vibration reserves the right to change specifications and accessories without notice.

Ordering info

[acc. category]

GRAS 40EN 1" Microphone
GRAS 26AK ½" Preamplifier with GRAS RA0017 Adapter
