GRAS PR0002 Array Module
A mounting rail which allows array microphones to be spaced at intervals of 25 mm, 50 mm, 75 mm, 100 mm, etc.
Technology
Introduction

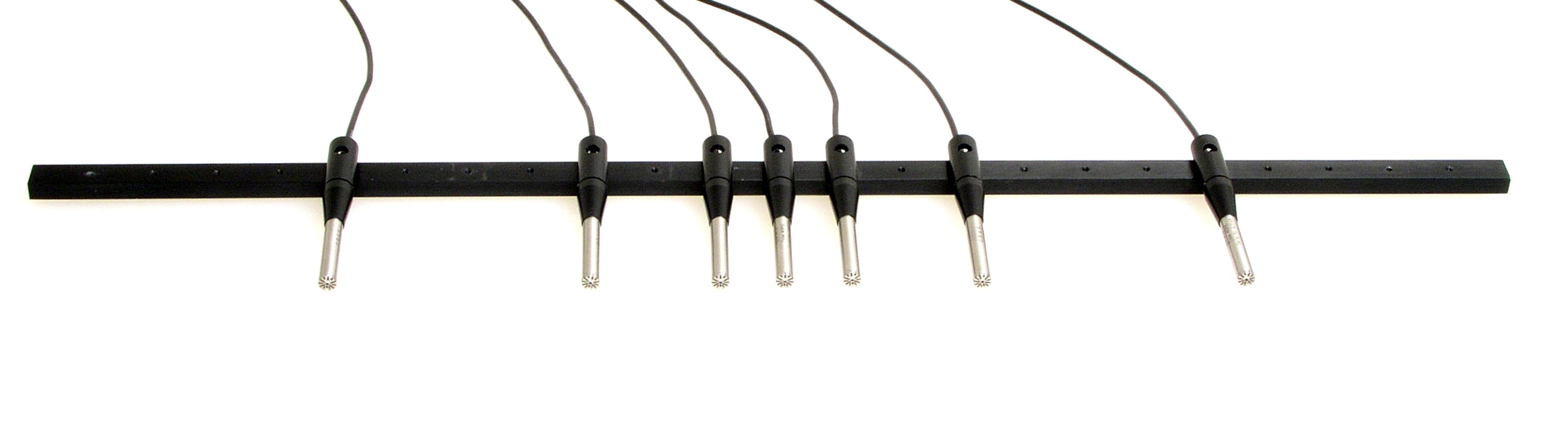

The GRAS PR0002 Array module is a mounting rail which allows array microphones GRAS 40PH & 40PL to be spaced at intervals of 25 mm, 50 mm, 75 mm, 100 mm etc. i.e. it has 23 microphone positions spaced 25 mm. The PR0002 is delivered with 8 microphone holders. Additional microphone holders can be purchased (GRAS RA0185).
In case you wish to equip the rail with 1/4" standard microphone sets (typically GRAS 46BE), then use the GRAS RA0245 microphone holders instead of the GR0185.
It is possible to extend the array horizontally and vertically to obtain a bigger array. The array microphones are provided with SMB connectors to which cables are run directly. Regarding the selection of cables and Power Modules, see 40PH and 40PL.
Quality & Warranty
GRAS accessories are made of stainless steel, alloys and high-quality composites. These items are covered by a 2 year warranty respecting their intended use.
On consumables like batteries, cables and windscreen we offer a 6 month warranty.
Ordering info
Included
| - | Mounting rail with 23 microphone holder positions spaced 25 mm |
| GRAS RA0185 | Microphone holders (8 pcs) |
Optional
| GRAS RA0185 | Microphone holder (if more than the 8 included are needed) |
| GRAS RA0245 | Holder for 1/4" microphone set in PR0002 Array module |
| GRAS RA0630 | Connection piece for mounting additional Array module horisontally. Connects the ends of two Array modules. |
| GRAS RA0107 | Set of 6 spacers for mounting additional Array module verically and spaced 50 mm. |
| GRAS SK4003 | Top nut for spacers (M5 stainless steel) |
| GRAS RA0094 | Tripod adapter |
| GRAS AL0006 | Tripod |
Array microphones, cables and Power module. See information under 40PH & 40PL |
