GRAS 90AA Audiometer Calibration System Equipment

Freq range:
ANSI: S.1.40, S.1.43, S.1.11, S.3.6
IEC: 60318-1 & -2

The GRAS 90AA Audiometer Calibration System is easy and fast to set up and control and can be upgraded as your calibration needs change. From quick measuring of frequencies and test signal levels to harmonic distortion and representation of the values in one table together with the third octave band spectrum.

Technology

Typical applications and use

Typical users are

  • Owners of Audiometers
    • Hospitals, ENT-department (ordinary and military)
    • Hearing clinics
    • Hearing aid fitters / dispensers
  • Calibration service providers
    • Test houses / Certification labs
    • On-site calibration providers

Calibration of supra- and circum-aural and insert earphones

Free-field calibration and audiometric booth verification

Modular artificial ear systems according to standards

Dedicated audiometer calibration analyzer

Design

The GRAS 90AA Audiometer Calibration System is configured to meet the requirements of modern audio-meter calibration. It is easy and fast to set up and control, and can be upgraded as your calibration needs change. Two standard packages are available and several options can be added, depending on the type and features of the audiometer and respective ear-phones connected.

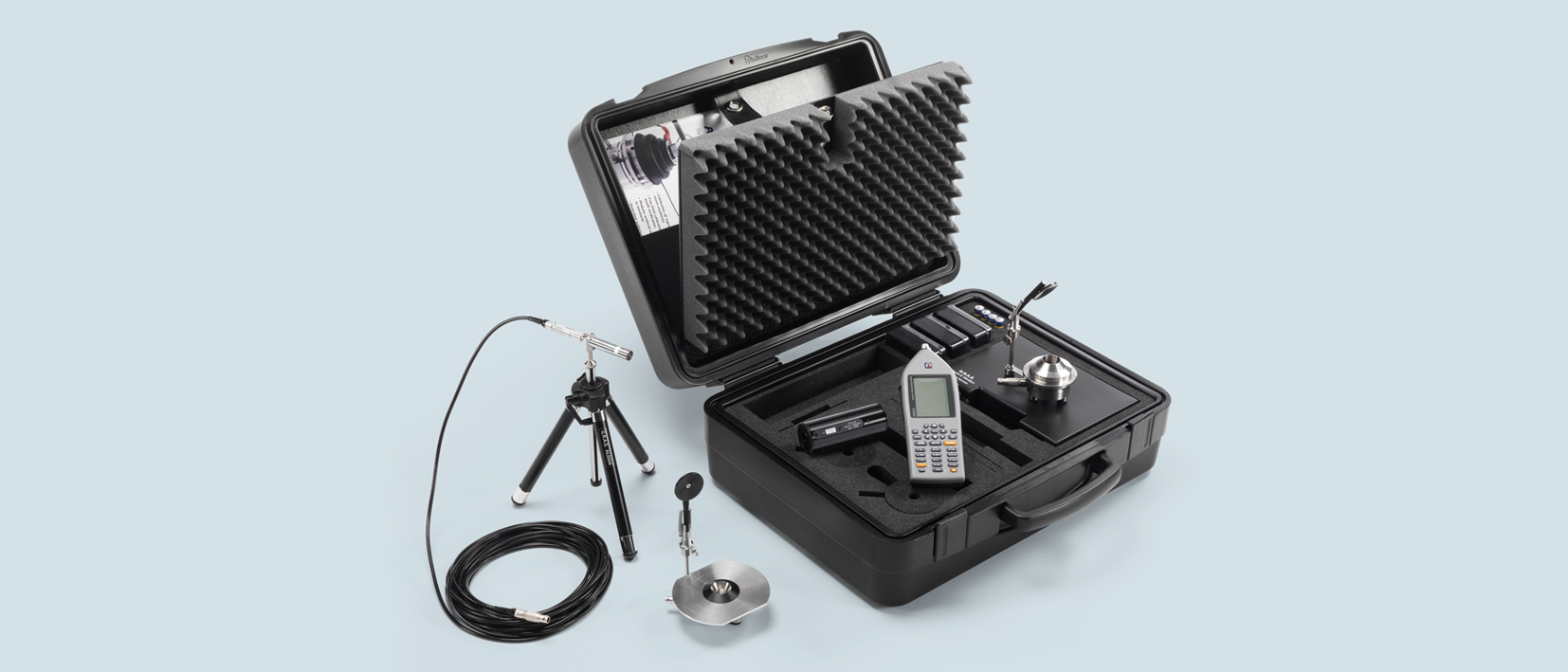

The 90AA Audiometer Calibration System includes artificial ears for TDH-39/49 and HDA-200 and an audiometer calibration analyzer.

Specifications

ANSI standard
S1.40, S1.43, S1.11, S3.6

GRAS Sound & Vibration reserves the right to change specifications and accessories without notice.

Ordering info

Included

GRAS 43AA-S7 IEC 60318-1 & 2 Artificial Ear
GRAS 43AF-S4 Artificial Ear w/NMS 9A 6cc coupler
GRAS HW1001 Audiometer Calibration Analyzer
GRAS 42AG Multifunction Sound Calibrator
GRAS RA0184 Force Gauge (Newtonmeter)

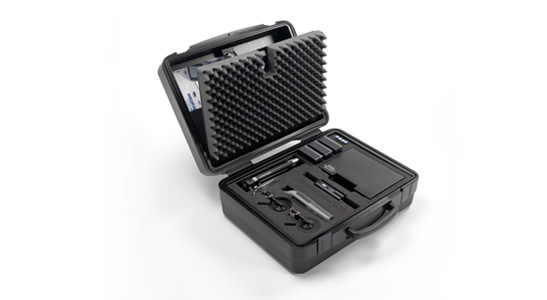

GRAS KM0078 Audiometer Calibration System Suitcase
GRAS EL0001 Battery Alkaline LR6-AA 1.5V (4 pcs incl.)
GRAS LI0039 Manual

Optional

GRAS OP0001 Insert Earphone Option (IEC60318-5 2cc Reference Coupler RA0113 for 1” Microphone)
GRAS OP0002 Free-field Calibration Option (Free-field microphone 46AF, 10 m LEMO cable, tripod adapter and tripod)

GRAS Sound & Vibration reserves the right to change specifications and accessories without notice.
