Introduction

The GRAS AL0030-x Production Line Acoustic Test Chambers are an anechoic test chambers for acoustic production line testing of mobile devices, for example cell phones, tablets, bluetooth speaker systems and similarly sized portable acoustic devices. It provides a flexible platform that can be configured to suit specific requirements.

Design

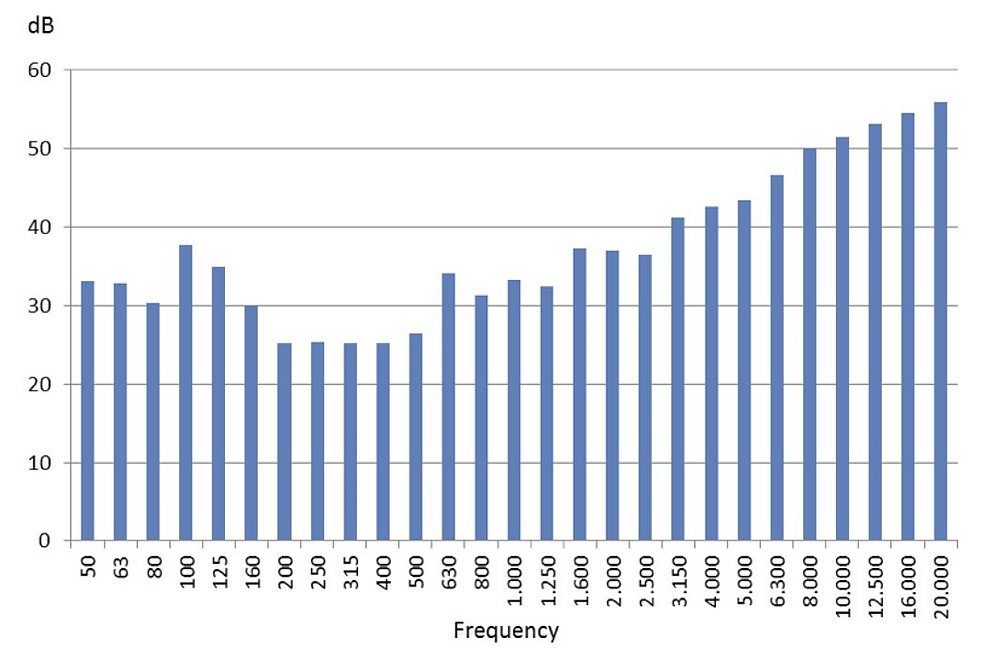

It is built from medium density fiber board lined with acoustic damping material. A large opening at the back of the chamber allows easy access to the chamber for configuring the test setup. The chamber has shock and vibration absorbing feet that prevent vibration from the outside from influencing the measurements.

It has a drawer with multi-adjustable holders for easy and safe mounting and removal of the device under test (DUT). It can hold small and medium sized portable devices up to (WxDxH) 300 x 200 x 228 mm (12″ x 8″ x 9″).

The test chamber has four fixing points for microphones and sound source, two at the top and two at the bottom panel. Holders for a total of four microphones and/or sound sources can be mounted at these fixing points. Additionally, a microphone can be attached to the drawer.

A connector panel that can be configured with 8 or 10 (depending on drawer size) user-specified connectors provides interface to external instruments. You find more information in the "Brochure" , also available in the "Resources".

A Flexible and Configurable Test Platform

AL0030 provides a flexible test platform that can be configured to suit specific needs.



The basic configuration starts with selecting the chamber between the 3 versions:

• AL0030-1 with a small drawer for maximum DUT dimensions (WxDxH) 30 x 20 x 6,6 cm
• AL0030-2 with large drawer with fixture in upper part of the test space and maximum DUT dimensions (WxDxH) 30 x 20 x 22,8 cm
• AL0030-3 with large drawer with fixture in lower part of the test space and maximum DUT dimensions (WxDxH) 30 x 20 x 22,8 cm

All versions include user selectable accessories for immediate acoustic testing.

As standard the AL0030 comes with a basic suite of accessories needed for audio response testing. The following are included:

• The Acoustic Test Chamber
• Choice of one microphone set
• Choice of a set of  DUT holders
• Choice of one microphone holder
• One connector panel drawer:  select between standard or large
• One cable for the microphone set

Additionally, the test chamber can be fitted with a sound source and artificial ear.
The connector plate can also be ordered blind for your own adaptation.

Included and optional accessories for AL0030 are listed under the tab Ordering info.

You can find more information in the downloable Brochure, available as well under "Resources".

The configuration of a test box is done together with your GRAS sales representative.

If you should have have needs that are not covered by these options we are open to customize it to suit your specific needs. Contact (your local) GRAS (representative) to initiate a customization process.

Quality and warranty

The Acoustic Test Chamber is covered by a two year warranty. For cables and accessories, the warranty for the specific item is valid.

Test camber versions

Included items

Included Items - user selections

Reference Microphone

Microphone Holder

DUT holders—one set of 4

Connector Panel

Selectable Connector-panel Connector Options

NOTE: Please contact support@GRASacoustics.com for help configuing the Production Line Acoustic Test Chamber.

Optional Items - not included

Sound Source

Sound Source Holder

Ear Simulator

Cables

Miscellaneous
